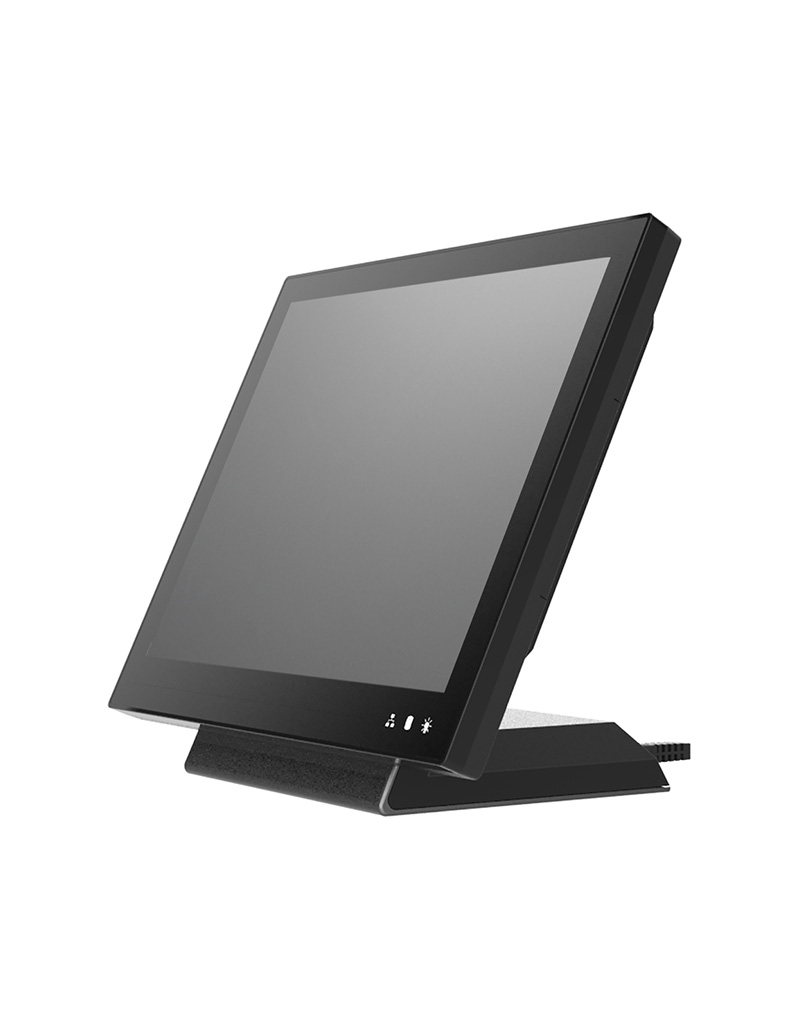

ເຄື່ອງຄອມພິວເຕີຂາຍໜ້າຮ້ານ ເຄື່ອງ POS KEPLER DG-1505
₭0
| Product | : | Kepler DG-1505 |
| CPU | : | Intel i5 – 7300U |
| RAM | : | 8GB DDR4 |
| Storage | : | SSD 256GB |
| Display | : | 15″ LED Touch Screen PCAP |
| Resolution | : | 1024×768 pixel |
| OS | : | Windows 10 |
ລາຄາ: 47.990฿
POS Terminal ເຄື່ອງ POS ລຸ້ນໃໝ່ລ່າສຸດ Kepler DG-1505 ໂຕເຄື່ອງສີດຳ ທີ່ມາພ້ອມກັບເທັກໂນໂລຢີໂປຣເຊດເຊີ້ປະສິດທິພາບສູງຈາກ Intel® Kabylake ຂະໜາດໜ້າຈໍ 15” ຄວາມລະອຽດຂອງໜ້າຈໍ 1024×768 pixel ໜ້າຈໍ LED (Backlight) ແບບປະຢັດພະລັງງານ ມີຄວາມທົນທານ ເໝາະສຳລັບການເປີດໃຊ້ງານທີ່ຕໍ່ເນື່ອງ ໜ້າຈໍຂອງຈໍທັດສະກຣີນສາມາດໃຊ້ງານໄດ້ສະດວກວ່ອງໄວ ແລະ ສາມາດໃຊ້ງານຮ່ວມກັບເຄື່ອງອ່ານບາໂຄ໊ດ ເຄື່ອງພິມໃບບິນນ້ອຍ ລິ້ນຊັກເກັບເງິນ ເປັນຕົ້ນ
ຄຸນສົມບັດ:
• ຂະໜາດໜ້າຈໍ 15” ຮອງຮັບລະບົບການ Touch Screen ແບບ PCAP
• ຄວາມລະອຽດຂອງໜ້າຈໍ 1024×768 pixel
• RAM: 8GB DDR4
• ຮອງຮັບການຈັດເກັບຂໍ້ມູນແບບ SSD 256GB
• OS : Windows 10 IoT
• ເປັນມິດຕໍ່ສິ່ງແວດລ້ອມ ມີນ້ຳໜັກເບົາ ຮູບຮ່າງພຽວບາງ ປະຢັດພື້ນທີ່
• ປະຢັດພະລັງງານດ້ວຍໜ້າຈໍ LED (Backlight)
Specifications
| ໜ່ວຍປະມວນຜົນ | Intel® Kabylake – U Processor :
i5 – 7300U (4 cores, up to 2.5 GHz, TDP 15 Watt) |
| Chipset | Intel® HD Graphics 620 |
| ໜ່ວຍຄວາມຈຳລະບົບ (RAM) | SO – DIMM DDR4 x 1 2133Mhz, 8GB |
| Thermal Solution | Fanless |
| ລະບົບປະຕິບັດການ | Windows 10 IoT |
| LCD Size | 15” TFT ขนาดหน้าจอ (LED Backlight) |
| ຄວາມສະຫວ່າງ | 400 nits |
| ຄວາມລະອຽດ | 1024 x 768 |
| Panel Backlight Type | LED |
| Touch Screen | P-cap |
| อินเตอร์เฟซ | SATA x 3 (6.0Gb/S) Support RAID 0/1 |
| SSD | M.2 2242 SSD 256GB |
| COM | COM1 : RJ50 to DB9 RS232 x 1 (RI / 5V / 12V by BIOS Selection)
COM2 : RJ50 to DB9 RS232 x 1 (RI / 5V / 12V by BIOS Selection) COM3 : RJ50 to DB9 RS232 |
| USB | USB 3.0 x 4
USB 2.0 x 2 |
| LAN | Gigabit Ethernet by RJ-45 x 1, Support Wake on LAN |
| Cash Drawer | RJ12 x 1, Support 12V / 24V DC cash drawer |
| Audio | 2 Watt Speaker x 2 (Stereo) |
| Video | Mini Display Port x 2 |
| DC-in | 19VDC input, 2pins jack x 1 |
| Power Button | Power Button x 1 |
| COM | COM4 : RS232 pin-header x 1 (No power, Option)
COM5 : RS232 pin-header x 1 (No power, Option) COM6 : RS232 pin-header x 1 (5V for VFD) |
| SATA | SATA Connector (NB Type) x 1 |
| 50 pin pin – header | 50 pin-header x 1 (EDP, COM6 (12V,VFD), USB2.0 3, Power Switch and LED) |
| Audio | Pin Header for Speaker x 1 |
| Battery | CR2032 |
| Cash Drawer Power | Pin Header 12V/24V |
| Power Switch and LED | Pin Header |
| ສະລ໊ອດເສີມ | M.2 2230 E-key slot x 1 (for Wi-Fi Module, Included USB2.0 signal)
M.2 2242 SSD slot x 2 |
| Communication | Wireless LAN module, M.2 2230 E-key (Optional) |
| Wall mount | Option VESA mounting bracket |
| Power Suppy | External adapter, 19V DC input, 65Watt |
| Color | Black |
| ວັດສະດຸ | Plastic / Aluminium / SECC |
| EMC & Safety Compliance | CE / FCC / VCCI / CB / WEEE / SECC |
| ມິດຕິໂຕເຄື່ອງ (W x D x H) | 36 x 18.9 x 29 cm (14.2 x 7.5 x 11.4 inch) |
| ນ້ຳໜັກ | 5.3 kg |
